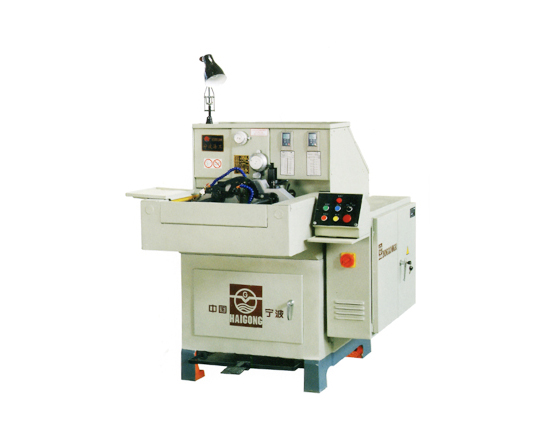

WHM-200
Details
Model | WHM-200 |
machining range | (maneuvering stroke) |
spindle speed | 250-2500rpm frequency control |
spindle motor | 1.5KW 10~200hz frequency control |
stroke length | 0~160mm |
stroke speed | 80~310rpm |
stroke motor | 0.75kw 10~200hz |
stop brake of spindle and stroke | active electronic brake (can be matching adjustment) |
oil pump motor | 0.125kw |
reservoir capacity | 96 liter/min |
exterior size | 1370*1255*1485m |
machine net weight | 720kg |
power | 380V 50Hz 3X |
