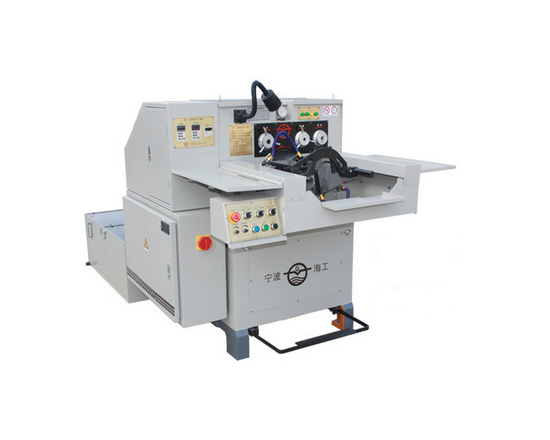

HG-1
Details
Model | HG-1 |
| machining range | ∮30mm-∮130mm |
spindle speed | 150～800rpm，inverter speed control |
spindle motor | 3KW inverter speed control, brake |
stroke length | 0～180mm,stepless |
stroke speed | 40～150rpm，inverter speed control |
stroke motor | 0.75KW， inverter speed control, brake |
cooling pump | 130W，the flow of 25 l/min |
the filter motor | 40W |
power supply is the total power | 4KW |
cooling box work volume | 350L |
the host dimension | 1080mm×1430mm×1360mm |
| machine net weight | 920 kg (host of 765 kg, 155 kg of tank, excluding honing oil weight) |
tank size shape | 1010mm×1150mm×745mm |
the power supply | 380V 50Hz 3p |
